A Complete Guide to UK Paving Standards and Commercial Applications
Civil engineering paving encompasses far more than laying surfaces. It covers the design, construction and maintenance of engineered pavements across adoptable highways, commercial developments, industrial sites and public realm schemes throughout the UK. Paving materials can include a variety of options such as natural stone, concrete, brick, and porcelain, each offering different aesthetics and durability suited to specific applications. Paving stones or slabs can also add visual appeal or serve as focal points in garden landscapes, enhancing the overall look and feel of outdoor spaces. The variety of materials available allows customers to find the perfect paving solution for their specific needs.
Understanding the distinction between domestic and engineered paving is essential. While patio slabs and garden paving serve residential spaces with lighter loading requirements, civil engineering pavements must withstand vehicular traffic, heavy goods vehicles and intensive pedestrian use. With so many options and requirements, it can be hard to decide on the right paving materials for your project. The main materials used by a typical UK paving company includes asphalt for carriageways, concrete block paving for service yards, precast concrete slabs for plazas, natural stone including indian sandstone for prestige schemes, and resin-bound systems for decorative areas.
Compliance with UK paving standards is non-negotiable for any project seeking adoption by highway authorities or meeting client specifications. The BS 7533 suite, BS EN 1338, and the Specification for Highway Works govern everything from structural design to installation tolerances. With BS 7533-102:2025 published in March 2025, this article provides the practical guidance designers, contractors and asset owners need to understand what compliance means in practice.
The UK Regulatory and Standards Landscape for Paving
UK civil paving design is fundamentally standards-driven. Without alignment to British Standards and Department for Transport guidance, projects risk rejection by local authorities and major clients during adoption or handover processes.
The BS 7533 family forms the backbone of modular paving specification (such as block paving). It covers the design, installation and maintenance of pavements constructed with paving blocks, slabs, natural stone and clay units across both trafficked and pedestrian areas. BS 7533-101:2021 addresses structural design methods, providing calculation approaches for different load classes and subgrade conditions.
BS 7533-102:2025 represents the most significant recent update. Published on 31 March 2025, this consolidated document replaces earlier installation standards including BS 7533-3:2005+A1:2009, BS 7533-4:2006, BS 7533-9:2010 and BS 7533-11:2003. It provides unified guidance on modular paving installation, covering sub-base preparation, bedding materials, jointing, compaction and drainage requirements for both bound and unbound systems.
BS EN 1338:2003+A3:2009 governs concrete paving blocks, setting performance requirements for compressive and tensile strength, abrasion resistance, freeze-thaw durability, slip/skid resistance and dimensional tolerances. For concrete paving flags and slabs, BS EN 1339:2003 specifies bending strength classes and breaking load requirements appropriate for pedestrian areas, shared surfaces and light vehicular loading.
The Specification for Highway Works, particularly Series 1100 for kerbs, footways and paved areas, governs adoptable works across England, Wales, Scotland and Northern Ireland. Kerb design and installation are specifically governed by BS EN 1340 and SHW requirements, ensuring compliance with national standards for both structural integrity and installation practices. This integrates with the Design Manual for Roads and Bridges for trunk roads and Manual for Streets for urban streetscapes. Local highway authority design guides, many updated between 2020 and 2023, interpret these national standards for estate roads, footways and cycleways within their jurisdictions.
Material Selection for Paving
Material selection must balance load capacity, slip resistance, aesthetics, whole-life cost and maintenance requirements. Every choice should be justified against BS 7533 design methods, with specifications clearly referencing the appropriate product standards. Guidance is available to help customers decide which paving products and styles, including block paving for its versatility and ease of maintenance, best suit their project, ensuring the final selection meets both functional and visual requirements.
Outdoor paving materials include concrete, natural stone, and porcelain, each with unique aesthetics, longevity, and maintenance needs. Paving slabs are available in various shapes and sizes, allowing for customization in design to fit different garden and patio layouts in domestic settings, while commercial applications demand more rigorous specification.

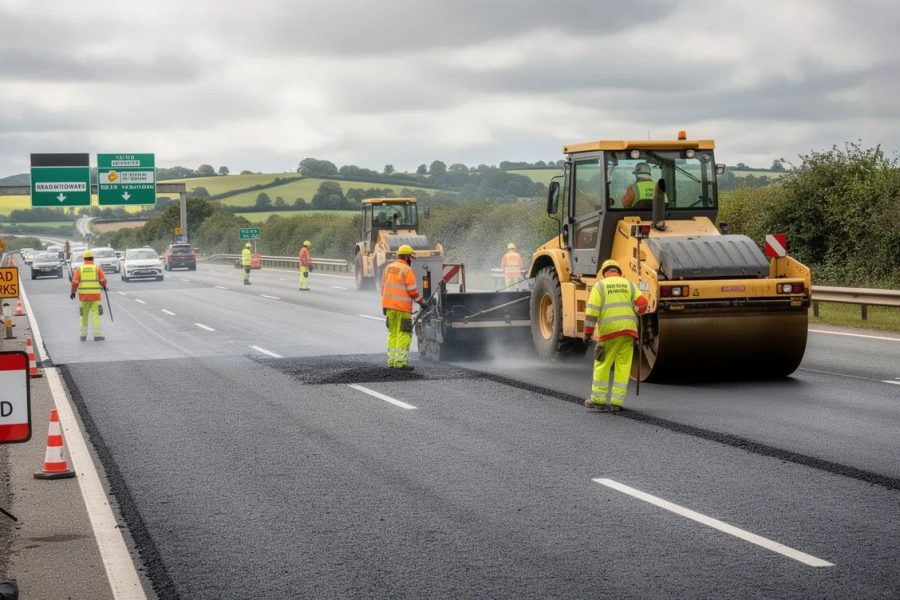

Asphalt Paving
A smooth, continuous surface material is commonly used for driveways and is efficient at handling heavy vehicle traffic, though it offers limited aesthetic appeal compared to modular alternatives. Asphalt serves heavily trafficked carriageways, industrial yards and commercial car parks throughout the UK. Typical mixes include AC 20 and Stone Mastic Asphalt for durability and skid resistance. All asphalt for adoptable works must comply with BS EN 13108 and relevant SHW clauses, with surface course thicknesses typically ranging from 40 to 80mm depending on traffic loading.

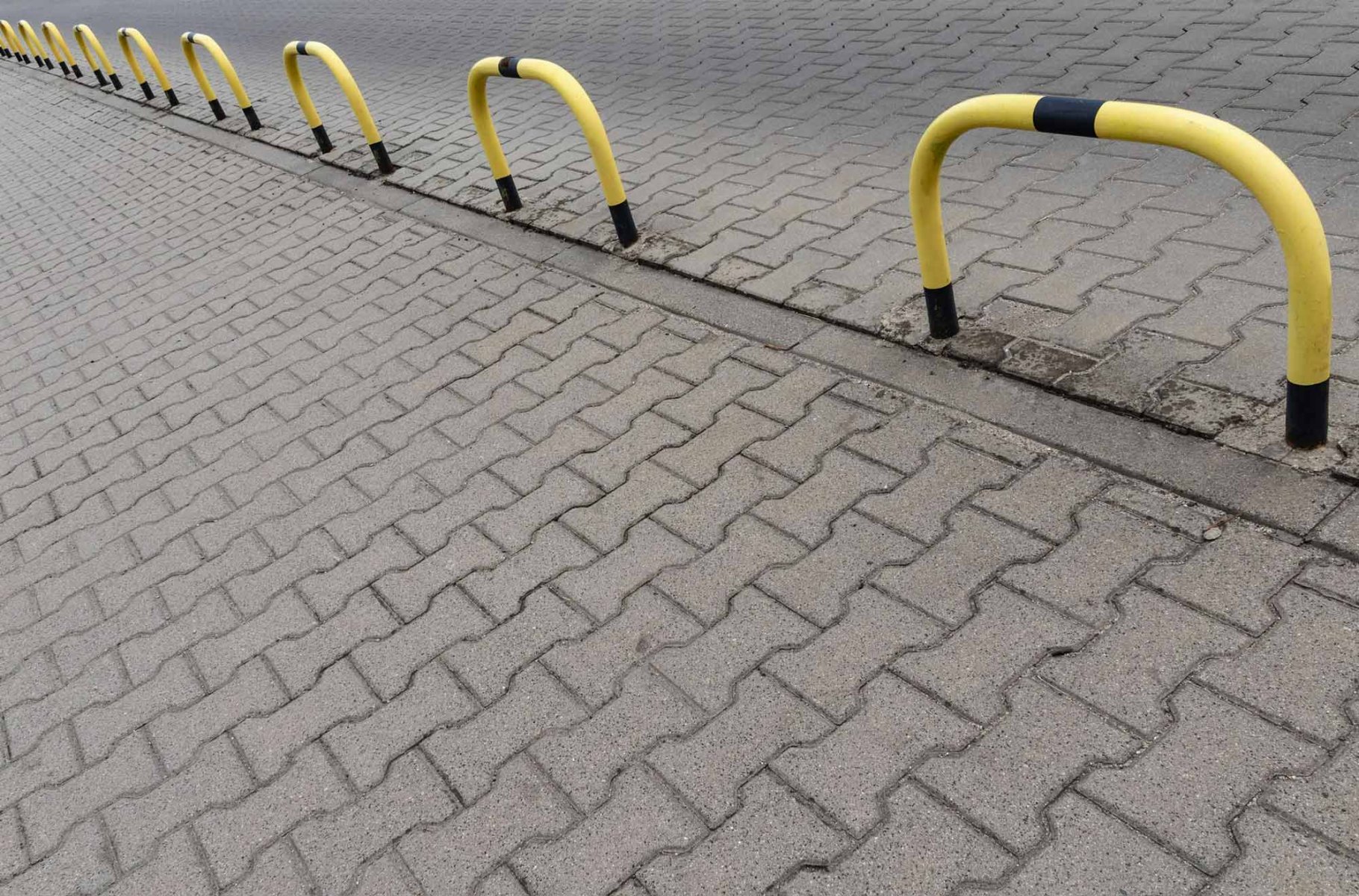

Concrete Block Paving
Concrete paving is versatile, cost-effective, and available in various shapes and styles, though it might look less authentic than natural stone. Units manufactured to BS EN 1338 come in thicknesses of 60mm for car parks and light vehicular areas, increasing to 80mm or more where HGV trafficking occurs. Interlocking concrete or clay bricks are commonly used for driveways and are engineered to handle vehicle weight, with individual blocks replaceable if damaged. Man-made blocks or slabs from cement, aggregates, and pigments are common paving materials offering excellent durability and range of colours. Customers can buy concrete paving products in a variety of pack sizes, with options to avoid split pack charges for greater flexibility and cost savings.
Rigid Concrete Paving
Precast paving slabs and flags to BS EN 1339 suit plazas, footways and shared surfaces. The term ‘flag’ is commonly used to describe large paving units, especially in commercial and public realm projects. Paving stones, also known as slabs, are commonly used for creating durable patios and garden paths that withstand various weather conditions. It is essential to use proper techniques to lay paving slabs to ensure a level surface and long-lasting durability. Paving slabs are available in various shapes and styles, including square, rectangular, and circular options, allowing for diverse design possibilities in outdoor spaces. For HGV yards and heavily loaded service areas, reinforced in-situ concrete slabs provide the flexural strength required for concentrated wheel loads.
Natural Stone Paving Slabs
Quarried stone offers a unique, organic aesthetic that manufactured products cannot replicate. Granite and similar materials are exceptionally long-lasting and can weather beautifully over time, but they generally have a higher upfront cost. Natural stone including indian sandstone, granite and limestone requires CE/UKCA marking and compliance with BS EN 1341 for slabs, BS EN 1342 for setts, and BS EN 1343 for kerbs. The choice of color in paving slabs can significantly impact the overall aesthetic of a garden, with options ranging from warm natural tones to bold, vibrant colours. Indian sandstone paving slabs start at £19.84 plus VAT per square metre, while granite commands premium pricing reflecting its durability.
Resin-Bound and Resin-Bonded Systems
These decorative surfacing options suit pedestrian plazas, cycleways, tree pits and interface zones. UV-stable binders, correct aggregate grading and slip resistance testing are essential specification points. While offering attractive textures and finishes, load capacity is limited compared to modular or rigid systems.
Permeable Paving Systems
Permeable concrete block paving and slabs help meet SuDS requirements and local planning conditions. BS 7533 provides guidance on water-infiltrating pavements, with open-graded sub-bases allowing surface water to drain through the pavement structure rather than running off to conventional drainage.
Performance Criteria: Strength, Durability and Slip Resistance
BS EN 1338 requires concrete blocks to achieve minimum tensile splitting strength of approximately 3.6 MPa for standard applications, with higher values specified for heavy trafficking. Highly durable materials are non-porous, fade-resistant, and require little maintenance, though they may have a higher upfront cost and require professional installation. Porcelain paving slabs are priced from £16.50 plus VAT per square metre, reflecting their superior performance characteristics. Man-made paving materials are often fired at extremely high temperatures, creating the dense, non-porous structure that delivers this durability.
Freeze-thaw resistance and de-icing salt resistance are critical for UK climates, particularly in northern and coastal locations. BS EN 1338 includes weathering resistance testing, while natural stone must satisfy water absorption limits and frost resistance per BS EN 1341/1342.
For pedestrian safety, slip/skid resistance testing using the pendulum test typically requires values of PTV 40 or higher in wet conditions. Local authorities increasingly specify minimum values in their design guides, particularly for steps, ramps and busy pedestrian areas.
Applications and Use-Cases: From Highways to Commercial Paving
No single paving solution fits all applications. Block paving is often chosen for its flexibility in both commercial and residential projects. Brick is another popular material for paving, especially in traditional or decorative settings. Materials and build-ups must align with loading class, environmental exposure and maintenance strategy to deliver the required design life.
Adoptable Highways and Estate Roads
Local highway authorities adopt roads built by developers when they meet SHW requirements, the relevant parts of BS 7533, and local design guide specifications. Asphalt carriageways typically feature concrete block paving at traffic calming features, with paving slabs or modular units to footways and shared surfaces. Typical design lives range from 20 to 40 years, requiring frost protection and sub-base compaction testing before adoption.
Industrial Yards, HGV Areas and Service Yards
Heavy goods vehicle trafficking demands high-strength, deformation-resistant solutions. Concrete block paving of 80mm thickness or greater, thick asphalt builds, or reinforced concrete slabs handle the concentrated loads from forklift traffic, container storage and tight turning movements common in logistics parks. Joint performance, robust edge restraints and fuel-resistant materials are essential specification points. Brick pavers can be purchased starting at £53.33 plus VAT per square metre, while clay pavers are available from £62.22 plus VAT per square metre for applications requiring premium aesthetics. Customers can place an order for these products either online or in-store, depending on the supplier’s options.
Commercial Car Parks and Retail Schemes
Supermarket, retail park and office car parks combine functional requirements with aesthetic expectations. Common layouts use asphalt drive aisles with concrete block paving or paving slabs in pedestrian routes, crossings and disabled bays. Surface water management, integration of EV charging infrastructure and wayfinding through contrasting colours and textures all influence material selection. Paving slabs come in a variety of sizes, from small stepping stones to large patio tiles, which can be selected based on the specific requirements of the garden layout or commercial scheme.
Public Realm, Urban Squares and Garden Paving Interfaces
High-profile public realm schemes in city centre squares, transport interchanges and campus plazas blend civil paving with softer landscaping and garden paving zones. Large-format natural stone, porcelain tiles and architectural concrete slabs deliver the smooth yet non-slip surfaces required for accessibility while creating visual continuity with adjacent garden areas. Loose stones or crushed aggregates are affordable and provide excellent drainage but can shift and become uneven over time, making them unsuitable for primary circulation routes.
Structural Design and Design Life of Paved Surfaces
Design life assumptions drive material selection and layer thicknesses. Typical horizons include 20 years for footways and cycleways, 40 years for estate roads and commercial car parks, and 60 years or more for strategic infrastructure and prestige public realm.
The structural design approach assesses traffic loading in cumulative standard axles, subgrade CBR values, climate exposure and drainage conditions to determine appropriate layer thicknesses. BS 7533-101 provides calculation methods for modular paving, while DMRB documents cover flexible and rigid pavement design.
Subgrade investigation through CBR testing and groundwater level assessment is particularly important on brownfield sites and former industrial land where ground conditions may be variable. Fatigue cracking and rutting represent key failure modes in trafficked asphalt, while surface wear and joint failure affect modular paving systems. Design life assumptions must be supported by realistic maintenance planning, including resurfacing intervals and unit replacement cycles.
Designing for Heavy vs Light Traffic
Lightly trafficked surfaces such as footways, cycle tracks and garden path transitions typically use 50 to 60mm thick units on compacted sub-base. Heavily trafficked surfaces including bus routes, industrial access roads and HGV yards require 80mm or thicker units, bound bases and enhanced edge restraints.
Special cases such as bus stops, loading bays and turning heads experience concentrated loading that standard pavement catalogues may not address. These require specific analysis against BS 7533-102:2025 and verification of joint stability under repeated heavy wheel loads.
Detailing, Construction and Quality Control

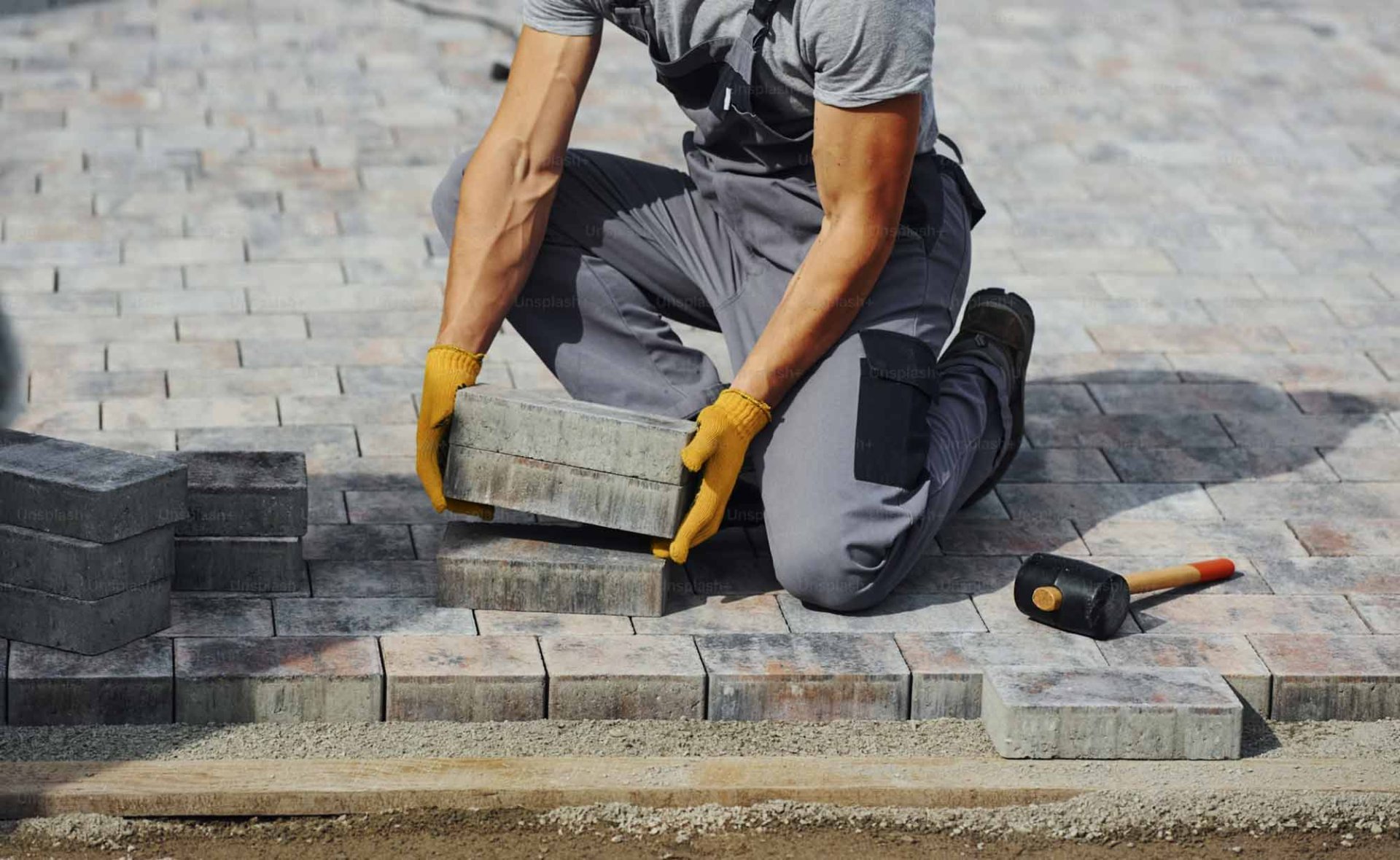

Even well-designed pavements fail prematurely without proper construction practice, supervision and testing. It’s important to prepare the ground thoroughly and install a sturdy base and edge restraints when paving a driveway to ensure structural integrity across all applications.
Excavation must remove unsuitable material to formation level, followed by compaction testing per BS 1377 before sub-base placement. Type 1 MOT aggregate to Clause 803 suits most applications, while open-graded stone supports permeable paving systems. Layer thicknesses and compaction requirements follow BS 7533-102:2025 guidance.
Bedding materials range from sharp sand for standard concrete block paving to bound mortars for natural stone and heavy-duty applications. Jointing uses kiln-dried sand, polymeric compounds or cementitious grouts depending on the paving type and loading conditions. Proper compaction and re-filling after vibration ensures joint stability. When painting paving slabs, it is best to opt for masonry paint after thorough surface preparation to ensure a long-lasting finish.
Edge restraints including precast concrete kerbs to BS EN 1340 must be adequately founded to resist lateral movement. Quality control checks cover level tolerances, joint width consistency, bond patterns and compaction test results, with site records required for adoptable works.
Common Construction Defects and How to Avoid Them
Rutting results from inadequate sub-base stiffness or poor compaction, requiring careful attention to formation preparation and layer-by-layer testing. Settlement and voids develop when subgrade treatment or compaction is insufficient, particularly around service trenches and interfaces.
Rocking blocks indicate weak bedding or incomplete jointing, while surface ponding points to incorrect falls or blocked drainage. Paving materials can be prone to moss and weed growth in joints and may shift over time without proper preparation. Spalling at joints and premature cracking in rigid slabs often trace to expansion joint omissions or poor concrete curing. Prevention requires strict adherence to BS 7533 construction tolerances and experienced supervision.
Maintenance, Whole-Life Cost and Sustainability
Whole-life costing compares initial capital expenditure with maintenance, repair and replacement over the design life. Modular paving allows localised repairs with minimal disruption, while asphalt requires periodic resurfacing that affects larger areas.
Regular maintenance of paving slabs can extend their lifespan and keep them looking their best. This includes cleaning, sealing, and repairing any cracks or damage promptly. To clean paving slabs effectively without a pressure washer, use a stiff brush, warm soapy water, and some elbow grease. For tough stains, a solution of water with white wine vinegar or baking soda can be helpful. You can shop for recommended maintenance products or paving materials to ensure the best results.
Sealing paving slabs can help protect them from stains and weather damage, making maintenance easier over time. It is recommended to reapply sealant every few years depending on the type of paving and environmental conditions.
Sustainability considerations include embodied carbon of materials, transport distances, and end-of-life options. Concrete blocks and natural stone can be lifted and relaid, supporting circular economy principles. Recycled aggregates in sub-bases reduce virgin material demand, while permeable paving contributes to SuDS compliance. Some suppliers offer free delivery or consolidated loads on orders exceeding 500 square metres, reducing transport emissions. Customers can visit the supplier’s website to explore delivery options and check product availability.
Inspection, Repair and Replacement Strategies
Annual visual inspections and condition grading help asset managers prioritise maintenance spend. Repair techniques include local block replacement, stone slab resetting, asphalt patching and resin surface overlays. Modular paving allows phased replacement and utility access with minimal visual impact, making it particularly suitable for city centre public realm where disruption costs are high. When deciding on repair strategies, factors including traffic volumes, available access windows and material availability all influence the practical approach.
Integrating Civil Paving with Landscape and Architectural Design
Civil engineering paving interfaces with softer landscaping, garden paving and architectural features in mixed-use schemes and campuses. Coordination between engineers, landscape architects and architects ensures consistent design language using modular products including large-format slabs, kerbs, edging and steps.
Contemporary UK projects from 2020 to 2026 increasingly feature porcelain exterior tiles, sawn natural stone and textured concrete slabs for accessible routes. These materials offer the range of options and finishes clients expect while maintaining compliance with slip resistance and structural requirements. Find the right product by working with suppliers who can speak to both aesthetic and technical requirements, helping you explore the variety of options available and choose materials that suit your project objectives.
For more information on finding local stockists or additional product details, please visit our ‘Where To Buy’ page.
Case-Style Examples of Successful UK Commercial Paving Schemes
City Centre Square, Northern England (2023): This regeneration project specified large-format granite slabs to BS EN 1341 for the main plaza, with concrete block paving to service access routes. Challenges included integrating existing utilities and achieving PTV values exceeding 45 for the stepped areas. After two winters, maintenance feedback confirms the stone has performed well with minimal joint deterioration.
Retail Park Access Road, Midlands (2024): The scheme combined 80mm concrete block paving in service yards with asphalt main carriageways. BS 7533-101 design methods ensured adequate capacity for delivery HGVs, while contrasting block colours define pedestrian safe zones. The client reports lower than expected maintenance costs in the first 18 months.
Logistics Hub, South East (2022): Heavy-duty concrete block paving at 80mm thickness throughout the trailer parking and loading bay areas has withstood intensive forklift and HGV trafficking. Edge restraint detailing proved critical, with early joint repairs required where original kerb haunching was inadequate. The project demonstrates the importance of specifying to the appropriate load class from the outset.
Conclusion and Next Steps for Specifiers and Contractors
A successful paving service requires alignment between UK standards, appropriate material selection and rigorous construction quality. The publication of BS 7533-102:2025 provides consolidated guidance that every specifier working on modular paving systems should review and incorporate into current specifications.
For specifiers, the practical checklist includes confirming applicable standards, defining design life based on traffic and use patterns, selecting materials matched to each application zone, ensuring detailing and construction quality through proper supervision, and planning inspection and maintenance regimes from project inception.
Next steps should include reviewing current standard specifications against updated guidance, training site teams on BS 7533-102:2025 installation requirements, and coordinating early with landscape architects and highway authorities to ensure all parties understand the compliance requirements. Quality products specified correctly, installed properly and maintained appropriately will deliver the durability and performance that civil engineering paving demands. Registering for a trade account also provides additional benefits, such as access to exclusive offers, technical support, and extra resources to support your paving projects.
